Bimetal Bushing Bearing Machine Guide: Automated Roll-Forming, Tooling & Production Lines
Share
Across automotive, heavy construction equipment, agricultural machinery, and hydraulic fluid power systems, sliding bearings (bushings) are fundamental wear components. Rather than machining costly solid bronze sleeves, modern original equipment manufacturers (OEMs) rely on wrapped bimetal bushings—combining high mechanical strength steel backing with low-friction, wear-resistant sintered bronze or aluminum-tin alloys.
Producing these precision wrapped bearings requires dedicated automated roll-forming and circular calibration machinery that maintains strict concentricity and prevents interlayer delamination. This technical guide explores the metallurgy of bimetal bearing strips, examines the roll-forming kinematics of NANSEN's SJD Series Bushing Bearing Machine, compares roll-forming against centrifugal tube casting, and outlines turnkey production lines.
Metallurgical Architecture of Wrapped Bimetal Bushings
A bimetal bushing is engineered as a composite multi-layer bearing:
- Outer Structural Steel Backing: Low-carbon steel (SPCC, SAE 1010, or Q235) provides high load-carrying capacity, structural rigidity, and secure press-fit interference within housing bores.
- Inner Anti-Friction Bearing Layer: Sintered lead-bronze (CuPb10Sn10), high-lead bronze (CuSn4Pb24), or aluminum-tin (AlSn20Cu) alloy matrix that exhibits low friction, high thermal conductivity, and excellent embeddability for particulate debris.
- Lubrication Indentations: Diamond-shaped or spherical oil indentations (oil pockets) and helical or figure-eight oil grooves embossed into the flat bronze surface before forming to retain grease or circulating oil.
Compared to monolithic bronze castings, wrapped bimetal bushings reduce raw material costs by up to 50%, increase fatigue resistance under dynamic impact loads, and eliminate catastrophic brittle fractures.
Roll-Forming Kinematics: From Strip to Finished Bushing
Forming flat multi-layer strip stock into a perfectly round split sleeve without peeling the sintered bronze layer requires synchronized multi-stage deformation:
- Continuous Servo Feeding & Length Cutting: Pre-slit bimetal coils are fed through a high-precision multi-roll leveler. A synchronized servo feeder indexes the exact developed circumference length before high-shear tooling cuts the blank with precision lead-in chamfers.
- Pre-Bending (U-Forming): A mechanical or hydraulic press punch presses the center of the blank into a contoured lower die, creating an initial U-shaped trough while ensuring the neutral bending axis remains within the steel substrate.
- Progressive Roll-Forming & Wrapping: Opposing forming rollers and a central mandrel progressively curl the outer flanks of the U-profile inward until the longitudinal seam edges meet, forming a closed cylindrical sleeve.
- High-Pressure Radial Coin-Calibration: The closed bushing enters a precision-sized circular sizing die. Radial coining pressure sets the final outside diameter (OD), ensures roundness within 0.02 mm, and locks the seam tightly to prevent post-assembly springback.

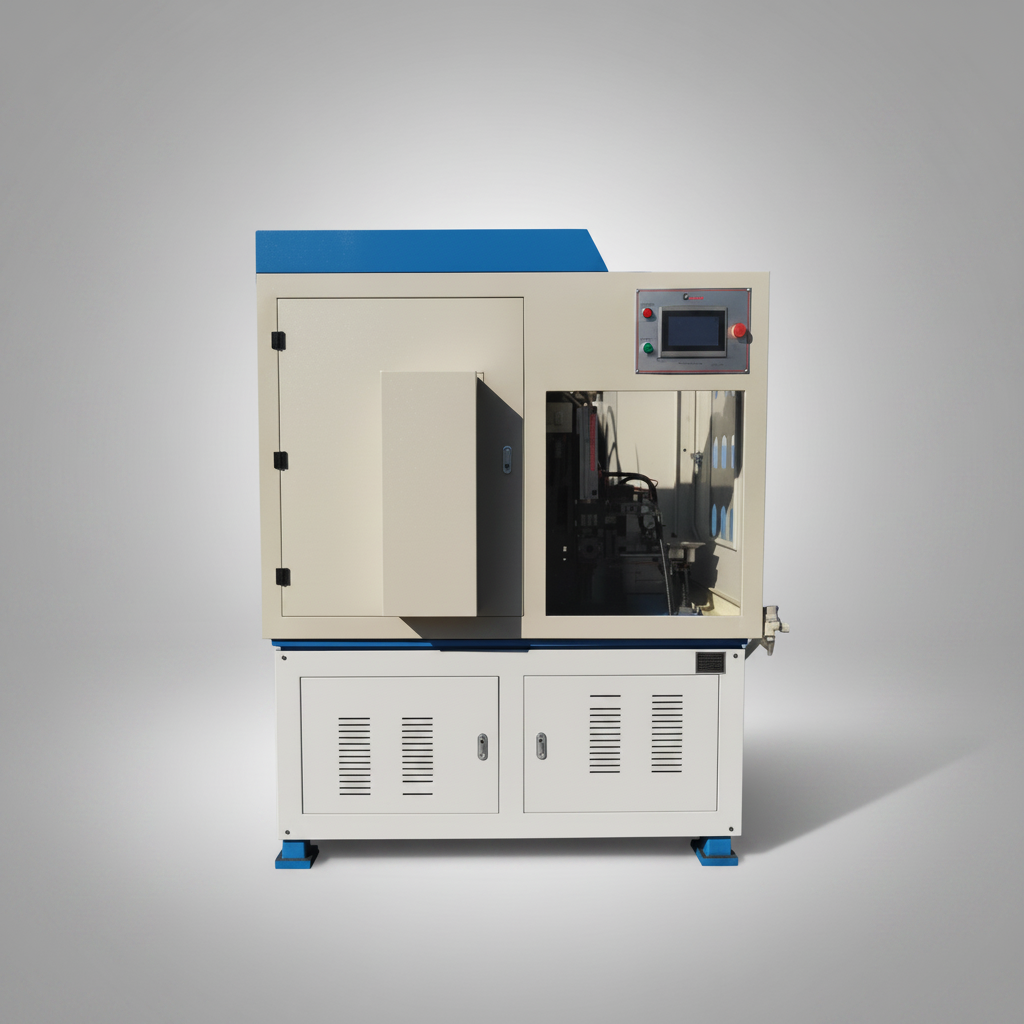

Technical Specifications: NANSEN SJD Series Bushing Machine
Below are the operational and mechanical specifications of our standard automated bimetal bushing production equipment:
| System Parameter | SJD Series Specification |
|---|---|
| Processing Diameter Range | Ø25 mm – Ø50 mm (Small Frame) / Ø50 mm – Ø120 mm (Standard Frame); up to Ø150 mm custom |
| Bushing Wall Thickness | 1.0 – 3.0 mm; 1.0 – 5.0 mm (Steel-backed bimetal, bronze, or brass) |
| Bushing Finished Height | 20 – 50 mm / 20 – 120 mm |
| Automated Cycle Efficiency | 6 – 9 pieces per minute (Standard continuous cycle) |
| Total Connected Motor Power | 11 kW (Energy-efficient servo hydraulic drive) |
| Machine Dimensions (L × W × H) | 2,100 × 1,800 × 2,300 mm |
| Total Machine Net Weight | 2,500 kg (Rigid vibration-damping frame) |
| Operational Interface | Color Touchscreen Display with Siemens / Schneider PLC Architecture |
Strip Roll-Forming vs. Centrifugal Cast Tube Machining
Transitioning from traditional cast tube turning to automated bimetal roll-forming provides dramatic cost and quality advantages:
| Manufacturing Metric | Centrifugal Bronze Cast Tubing | Automated Bimetal Roll-Forming Machine |
|---|---|---|
| Material Scrap Rate | 35% – 50% scrap generated during boring, turning, parting, and chip generation. | Under 3% scrap; strip stock is sheared directly to exact developed part circumference. |
| Oil Pocket & Groove Processing | Requires complex multi-axis internal CNC milling or broaching on finished cylindrical bores. | Patterned lubrication indents and grooves are stamped or rolled onto the flat strip prior to curling. |
| Structural Fatigue Strength | Cast bronze possesses moderate tensile strength; prone to cracking under high cyclic shock loads. | Steel backing delivers up to 350–550 MPa tensile strength, resisting heavy deformation in heavy-duty machinery. |
| Production Cycle Time | 3 – 8 minutes per part across multiple lathe and broaching setups. | 6 – 9 parts per minute continuously in a single automated machine cell. |
For operations forming cylindrical tubes or thick-walled plate bushings, also compare our Servo Three Roll Bending Machine.
Integrated Bushing Manufacturing Line Workflow
NANSEN provides turnkey manufacturing lines connecting raw strip stock to packed OEM bearings:
- Strip Coil Preparation: Continuous de-coiling and multi-roll leveling of bimetal stock.
- Roll-Forming & Sizing: Strip-to-bushing wrapping and circular calibration on the SJD Bushing Bearing Machine.
- Ultrasonic Degreasing & Wash: Forming lubricants and metallic fines are removed in our in-line Industrial Ultrasonic Cleaning & Drying Line.
- OD Precision Finishing: Centerless grinding and polishing to final m5/h6 tolerance on Industrial Grinding & Polishing Equipment.
- Automated Inspection: Optical laser diameter measurement and eddy-current seam crack detection.
Tooling Customization, Mandrel Design & Global RFQ Support
Every bushing application involves unique press-fit interferences, wall thicknesses, and oil groove designs. NANSEN provides full turnkey engineering:
- Hardened alloy steel forming mandrels and carbide-lined calibration dies engineered for tight concentricity.
- Tooling sets for standard cylindrical, flanged, and spherical split bushings.
- Pre-shipment trial forming using client sample bimetal strip coils, validated with coordinate measuring machine (CMM) reports.
- Export-grade ocean crating with on-site technician installation and training worldwide.
To evaluate your bushing drawings or request a technical quotation for the SJD Series machine, contact our engineering team at nsmonica88@gmail.com or explore our complete Metal Forming Machinery Catalog.
