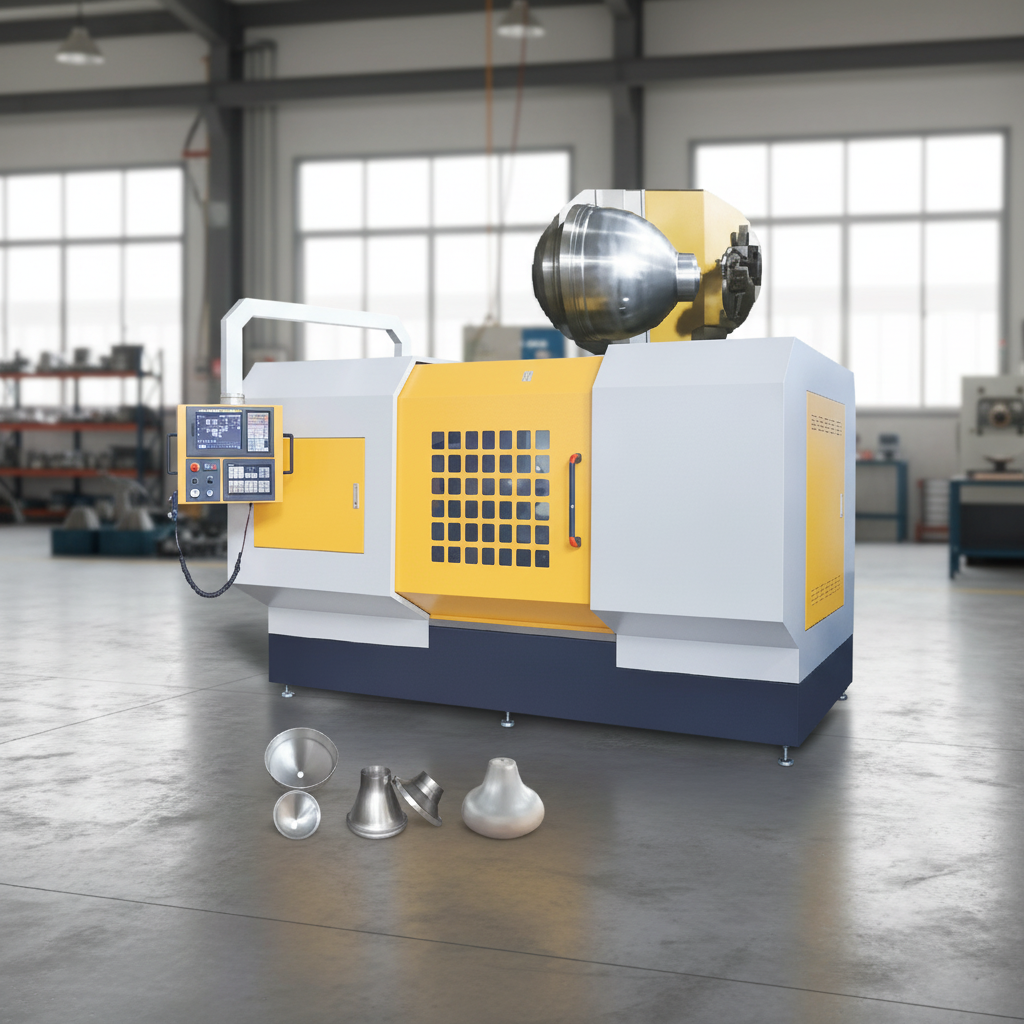

CNC Spinning Machine | Automatic Metal Spinning Equipment | NANSEN

Product Description

Technical Parameter	NS-CNC-650	NS-CNC-850	NS-CNC-1200
Max Blank Material Diameter	φ650 mm	φ850 mm	φ1200 mm
Max Spinning Depth / Height	350 mm	500 mm	700 mm
Forming Thickness (Aluminum)	0.5 – 4.0 mm	0.8 – 6.0 mm	1.0 – 8.0 mm
Forming Thickness (Stainless Steel)	0.5 – 2.0 mm	0.8 – 3.0 mm	1.0 – 4.0 mm
Spindle Speed Range	0 – 2500 RPM	0 – 1800 RPM	0 – 1200 RPM
X / Z Axis Servo Thrust Force	25 kN / 25 kN	35 kN / 40 kN	55 kN / 60 kN
Tool Turret Configuration	4-Station Auto Turret	4 / 6-Station Turret	6-Station Heavy Turret
Tailstock Hydraulic Clamping Stroke	350 mm	500 mm	700 mm
Main Spindle Motor Power	11 kW	18.5 kW	30 kW
CNC Controller & Teaching	Siemens / Syntec Industrial CNC System with Manual Pulse Generator (MPG) Teach-In
Repeat Positioning Precision	±0.015 mm (Linear optical scales / precision ball screws)
