Product Description
Deep Draw Press Machine
A deep draw press is a high-performance metal forming machine used to transform flat sheet metal into cylindrical or complex hollow shapes. This deep draw press machine is widely applied in aluminum cookware, automotive parts, and industrial container production.
Compared with traditional stamping, the deep draw press provides better material flow and reduces cracking, making it ideal for precision metal forming.
Working Principle of Hydraulic Deep Drawing Press
The deep drawing press uses controlled hydraulic force to push a punch into metal sheets, forming them into desired shapes through dies.
Key advantages of this deep draw press machine include:
- Stable forming pressure
- High precision control
- Reduced material waste
- Suitable for complex shapes
How to Choose the Right Tonnage for Aluminum Cookware
Selecting the correct press tonnage is one of the most critical decisions in cookware manufacturing. Too little force causes incomplete draws and wrinkling; too much can crack the blank or damage the die. Based on our field experience with cookware factories across Southeast Asia and the Middle East, here is a practical guide using our two core models:
NS-40 (32-Ton Nominal Pressure) — Best suited for small-to-medium aluminum pots and pans with a drawing diameter up to 420 mm and depth up to 220 mm. Typical applications include 20–26 cm diameter saucepans, milk pots, and shallow frying pans. The 32-ton blankholder force provides sufficient clamping for 1.0–2.0 mm aluminum sheet without tearing.
NS-55E (55-Ton Nominal Pressure) — Recommended for larger cookware items such as 28–36 cm stockpots, pressure cooker bases, and deep woks, where the drawing diameter reaches up to 580 mm and depth up to 280 mm. The higher tonnage accommodates thicker blanks (up to 3.0 mm) and multi-stage draws without compromising cycle speed (10 strokes/min).
Rule of thumb: For every 100 mm increase in drawing diameter on 1.5 mm aluminum sheet, expect to require approximately 8–12 additional tons of blankholder force. When in doubt, contact our engineering team for a free tonnage calculation based on your product drawing.
| Item | Specification |
|---|---|

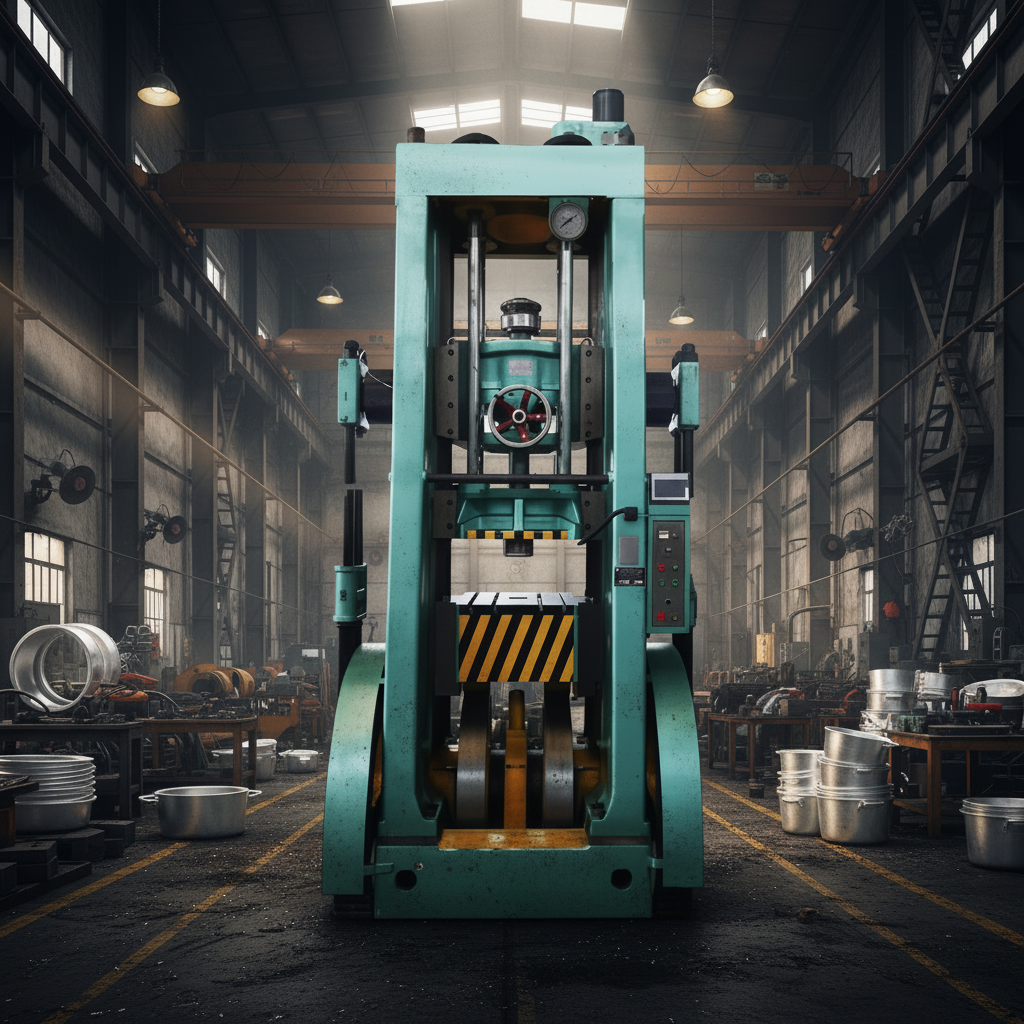

| Product Name | NS-40 DOUBLE ACTION MECHANICAL PRESS MACHINE |
| Nominal pressure of slide block | 32 Ton |
| Maximum Circle Diameter Used | 635 mm |
| Maximum Deep drawing Diameter | 420 mm |
| Deep drawing Maximum Depth | 220 mm |
| Travel Distance Slide block draw | 380 mm |
| Number of travels per minute | 11 No./Min |
| Dimension Operating Platform | 635*544 mm |
| Power of main Motor | 13 KW |
| Power of adjustable motor | 1.1 KW |
| Dimensions of the machine | 2580x1836x3600 mm |
| Weight of the machine | 14000 kg |
| Air Pressure Used | 4 Kg/CM² |
| Item | Specification |
|---|---|
| Product Name | NS-55E DOUBLE ACTION MECHANICAL PRESS MACHINE |
| Nominal pressure of slide block | 55 Ton |
| Maximum Circle Diameter Used | 780 mm |
| Maximum Deep drawing Diameter | 580 mm |
| Deep drawing Maximum Depth | 280 mm |
| Travel Distance Slide block draw | 560 mm |
| Number of travels per minute | 10 No./Min |
| Dimension Operating Platform | 660*720 mm |
| Power of main Motor | 15 KW |
| Power of adjustable motor | 1.1 KW |
| Dimensions of the machine | 2917x2602x3830 mm |
| Weight of the machine | 19500 kg |
| Air Pressure Used | 4 Kg/CM² |
Key Features
Hydraulic Precision
Controlled by PLC systems for smooth and stable operation, ensuring accurate forming with minimal material waste.
Heavy-Duty Design
Built with a rigid frame for long-term durability and consistent pressure output.
Multi-Stage Forming Capability
Ideal for producing deep-drawn products in multiple stages, including bottom forming, wall ironing, and flange forming.
Customizable Solutions
Available with automatic feeding, die heating systems, and deep drawing mold design for various product sizes and materials.
Customized Press Moulds for Cookware Production
Our moulds are fully compatible with our deep drawing press machines, ensuring:
Accurate forming | Long service life | Smooth, wrinkle-free drawing
We can supply a complete mould set, including: Upper & lower dies, Blank holder, Trimming die (optional), Curling or punching die (optional).
Advantages
Energy-Efficient Operation — Reduces power usage by operating via a mechanical inertial system compared to traditional hydraulic machines.
Low Noise — Quiet and stable operation, perfect for factory settings.
Low Maintenance — Mechanical structure minimizes breakdowns and maintenance needs.
Long Service Life — High-quality components ensure long-term durability.
High Production Speed — Up to 13–15 pieces per minute with consistent forming quality.
User-Friendly Interface — Simple controls allow easy operation in any environment.
Industrial Compatibility — 415V / 50Hz / 3 Phase standard power supply.
Certified Quality — Certified under IEC60204-1 by Intertek with COC approval for global markets.
Application
This deep draw press is widely used in:
- Aluminum cookware production (pots, pans)
- Stainless steel kitchenware
- Automotive components
- Metal containers and shells
- Industrial parts manufacturing
If you are producing aluminum products, a deep draw press machine is one of the most efficient solutions.
Materials Supported
Our deep drawing press supports various materials:
- Aluminum
- Stainless steel
- Carbon steel
- Copper
This makes the deep draw press highly flexible for different industries.
Deep Drawing vs Metal Spinning
Compared with CNC spinning:
| Process | Deep Draw Press | CNC Spinning |
|---|---|---|
| Speed | High (mass production) | Medium |
| Shape | Deep hollow parts | Symmetrical parts |
| Cost | Lower for large volume | Flexible for small batch |
Complete Production Solution
We not only provide a deep draw press, but also complete production solutions including:
- Mold design
- Automation system
- Trimming & finishing machines
- Surface treatment support
As a professional deep draw press manufacturer, we ensure stable performance and long service life.
Our Services
Our engineers provide on-site service for overseas clients, working closely with cookware companies to assist in the installation and testing of our delivered press machines. We ensure smooth setup, machine calibration, and production trial to support your operation from day one.
Why Choose Us?
- Rich experience in metal forming machines
- Reliable hydraulic deep drawing press quality
- Competitive factory price
- Customized solutions available
