Product Description

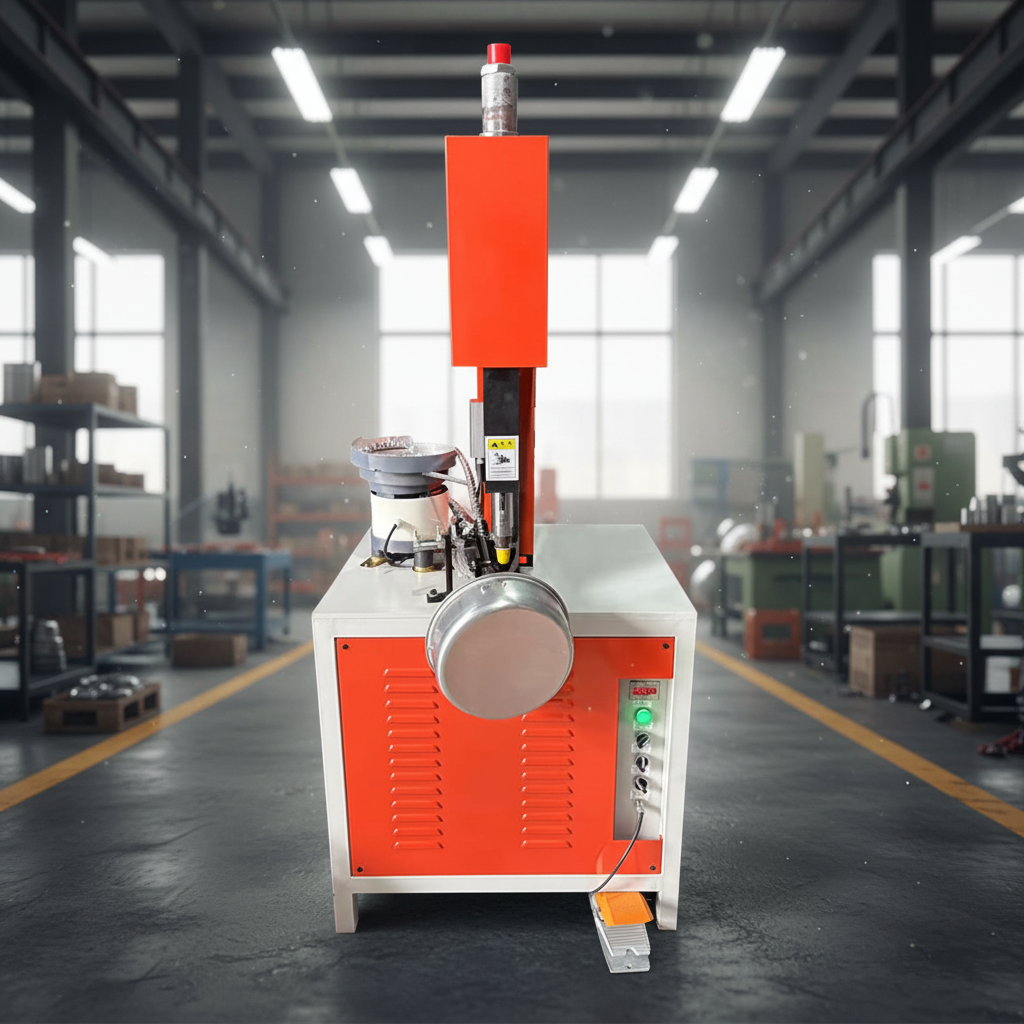

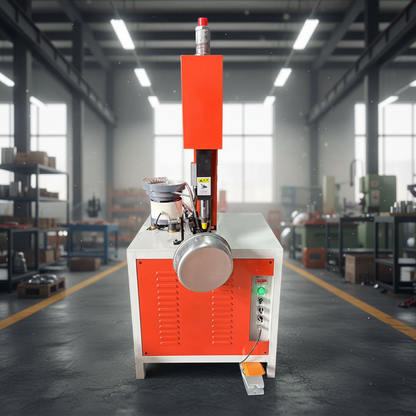

High-precision Hydraulic Riveting Machine custom-engineered for the cookware and hardware industry. Featuring an automatic vibration bowl feeder and a specialized manganese steel positioning system, this 5-ton press delivers flawless, high-strength riveting for solid aluminum rivets up to 8mm in diameter.
Technical Specifications
| Operational Parameter | Custom Configuration |
|---|---|
| Nominal Pressure | 5 Tons (Hydraulic Drive) |
| Max Riveting Diameter | Ø8 mm (Solid Aluminum Rivets) |
| Throat Depth | 260 mm (Ideal for Pots & Kettles) |
| Machine Weight | 300 KG |
Advanced Engineering Features
Manganese Steel Positioning
Custom-designed manganese steel plates accurately push and lock rivets into the lower die, retracting automatically during the downstroke to prevent interference.
Automated Sorting & Feeding
High-frequency vibration bowl automatically aligns rivets and sends them through the precision-machined slide-way, ensuring a continuous production cycle.
High-Volume Cookware Efficiency
- Perfect Roundness: Controlled hydraulic action ensures rivets deform uniformly without damaging vessel surfaces.
- Safety First: Fully enclosed feeding paths and stable hydraulic action reduce risk compared to manual riveting.
- Deep Throat: 260mm depth provides clearance for deep pots, kettles, and large pans.
Primary Industries
Product Focus
- Stainless Steel & Aluminum Pots
- Tea Kettles & Water Pitchers
- Frying Pans & Specialized Woks
