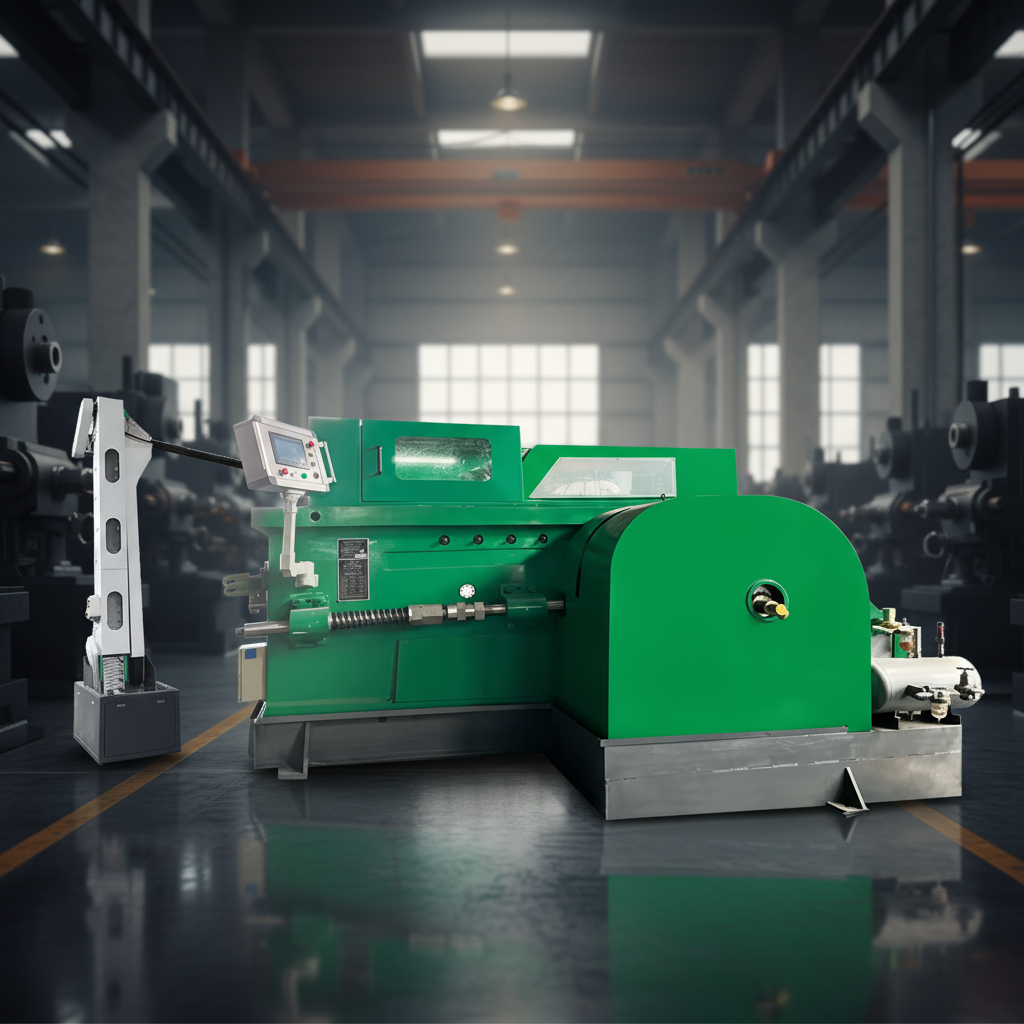

Horizontal Cold Extrusion Machine | Industrial Metal Forming Press
Horizontal Cold Extrusion Machine | Industrial Metal Forming Press
Share
Product Description
High-efficiency Horizontal Cold Extrusion Machine engineered for the high-speed production of aluminum cans, battery shells, and industrial tubes. This horizontal configuration enables automatic gravity-assisted discharge and seamless integration into continuous high-volume production lines.
Technical Specifications
| Operational Parameter | Horizontal Model Details |
|---|---|
| Nominal Force | 500 - 1200 Tons (Customizable) |
| Max Extrusion Speed | 60 - 120 pieces per minute |
| Max Product Diameter | 90 mm (Aluminum alloys) |
| Max Product Length | 350 mm |
| Control Interface | Touchscreen HMI with Multi-Axis PLC Control |
Key Engineering Features
Gravity-Assisted Output
The horizontal layout allows finished parts to discharge automatically via gravity, simplifying the downstream conveyor synchronization and reducing cycle times.
High-Speed Mechanical Drive
Optimized toggle-joint mechanism provides maximum pressure at the point of impact while maintaining high-speed return strokes for peak productivity.
Multi-Stage Safety Sensors
Equipped with tonnage monitors and infrared light curtains to detect double-material feeding or tooling misalignment, preventing expensive machine downtime.
Rigid Horizontal Bed
The heavy-duty monolithic casting base ensures perfect alignment between the punch and die, even under 1000+ tons of dynamic load.
Vertical vs. Horizontal Extrusion
Why select a Horizontal configuration for your metal forming line?
- Better Automation: Easier to link with automatic washers and drying lines due to the linear part flow.
- Maintenance Access: Major mechanical components are accessible at floor level, reducing the need for high-reach maintenance equipment.
- Stability: Lower center of gravity reduces vibration at ultra-high production speeds (100+ SPM).
Applications & Capability
Primary Products
- Aluminum Aerosol Cans
- Monobloc Aluminum Bottles
- Battery Shells & Housings
- Industrial Condenser Cans
Turnkey Tooling Support
We provide full matched toolsets:
- Tungsten Carbide Forming Dies
- Impact Extrusion Punches
- Automatic Slug Feeding Systems
Global Field Service & Installation
Our engineering team specializes in complete production line integration. From foundation design to on-site commissioning and 24/7 technical support, we ensure your facility delivers maximum output from day one.
