CNC Metal Spinning Machine: Working Principle, Tooling, and Industrial Applications
Share
Metal spinning—also known as spin forming or flow forming—is a precision chipless metal forming process widely utilized across the lighting, cookware, aerospace, ventilation, and automotive industries. With the integration of computerized numerical control (CNC), modern CNC metal spinning machines deliver exceptional repeatability, reduced tooling costs, and superior surface finishes compared to conventional manual spinning lathes and deep drawing presses.
In this technical engineering guide, we examine the mechanical working principles of CNC spinning lathes, compare single-roller and dual-roller tooling setups, analyze material forming characteristics, and provide practical criteria for machine selection.
1. Working Principle of CNC Metal Spinning
The core process of CNC metal spinning involves clamping a circular metal blank (or pre-formed cylinder) against a rotating mandrel (forming chuck) driven by a high-torque spindle. As the workpiece rotates at high speeds, rigid CNC-controlled spinning rollers apply continuous, localized radial and axial force along programmed tool paths, progressively flowing the metal over the mandrel contours until the final symmetrical geometry is achieved.
Unlike deep drawing—which relies on high-tonnage hydraulic presses and expensive matched male/female die sets—metal spinning forms components incrementally. This localized deformation significantly reduces forming tonnage requirements while ensuring uniform wall thickness and excellent tensile strength through work hardening.
2. Key Equipment Components of an Industrial CNC Spinning Machine
- High-Rigidity Headstock & Spindle: Powered by heavy-duty servo motors or variable-frequency drives (VFD) to deliver consistent torque across variable rotational speeds.
- Dual-Axis / Multi-Axis CNC Slide System: Precision ball screws and linear guideways driven by AC servo motors (X and Z axes) ensure sub-millimeter roller positioning and trajectory accuracy.
- Hydraulic Tailstock: Provides heavy clamping force with a revolving center to firmly lock blanks against the rotating chuck during spinning operations.
- Hydraulic / Servo Tool Turret: Accommodates multiple tooling heads (roughing rollers, finishing rollers, trimming cutters, and flanging tools) for automated multi-stage processing.
- CNC Controller & Conversational Programming: Specialized spinning software featuring teach-and-playback, CAD/CAM file import, and parametric contour generation.
3. Single Roller vs. Dual Roller Configuration
| Feature | Single-Roller Spinning Lathe | Dual-Roller (Synchronous) Spinning |
|---|---|---|
| Roller Setup | One spinning roller acting on one side of the blank | Two opposing rollers working simultaneously or sequentially |
| Spindle Load | Unbalanced radial force transferred to the main spindle | Opposed forces cancel radial deflection, extending spindle bearing life |
| Forming Capability | Thin to medium gauge sheet metal (up to 3.0 mm aluminum / 1.5 mm steel) | Heavy-duty plate spinning and flow forming (up to 6.0+ mm steel / aluminum) |
| Typical Applications | Lighting reflectors, cookware covers, decorative cones, architectural parts | Pressure vessel heads, gas cylinders, wheel rims, heavy industrial ventilation |
4. Materials Suitable for CNC Spinning
Most ductile metals can be formed effectively on a CNC spinning lathe:
- Aluminum & Aluminum Alloys (1050, 1060, 3003, 5052): Excellent ductility and low work-hardening rates make aluminum the most widely spun material for cookware, lamp shades, and automotive housings.
- Copper & Brass: Outstanding plasticity; ideal for musical instruments, HVAC expansion joints, and high-end decorative fixtures.
- Carbon Steel & Cold Rolled Sheet (SPCC, Q235): Used extensively for pulley wheels, fan housings, and general industrial containers.
- Stainless Steel (SUS304, SUS316): Higher tensile strength and rapid work hardening require robust machine rigidity, adequate hydraulic clamping, and optimal lubricating coolant.
5. Advantages of CNC Spinning Over Conventional Stamping
- Lower Tooling Investment: Only a single male mandrel is required (often made of hardened steel, cast iron, or dense engineering plastics), saving up to 80% compared to complex deep-draw stamping dies.
- Rapid Prototyping & Design Flexibility: Adjusting dimensions, flange angles, or roll paths requires only CNC program parameter adjustments without remaking dies.
- Superior Surface Quality & Concentricity: Continuous burnishing action by the spinning roller yields smooth finishes (often eliminating secondary polishing) with concentric tolerances within ±0.05 mm.
- Seamless One-Piece Construction: Produces seamless hollow symmetrical bodies free from weld seams, enhancing pressure resistance and structural integrity.
6. Selecting the Right Machine Configuration
When selecting a CNC metal spinning lathe for your manufacturing facility, consider the following parameters:
- Maximum Blank Diameter (Swing Over Bed): Determines the maximum initial disk size your machine can accommodate.
- Center Distance / Longitudinal Stroke (Z-Axis): Dictates the maximum allowable depth or height of the spun workpiece.
- Spindle Power & Max Thrust: Heavy stainless steel or thick carbon steel blanks require high axial/radial thrust (e.g., 25 kN to 50 kN) and high-torque AC spindle drives.
- Secondary Processing Attachments: Integrated trimming, curling, beading, and inner flanging attachments allow full part completion in a single clamping cycle.

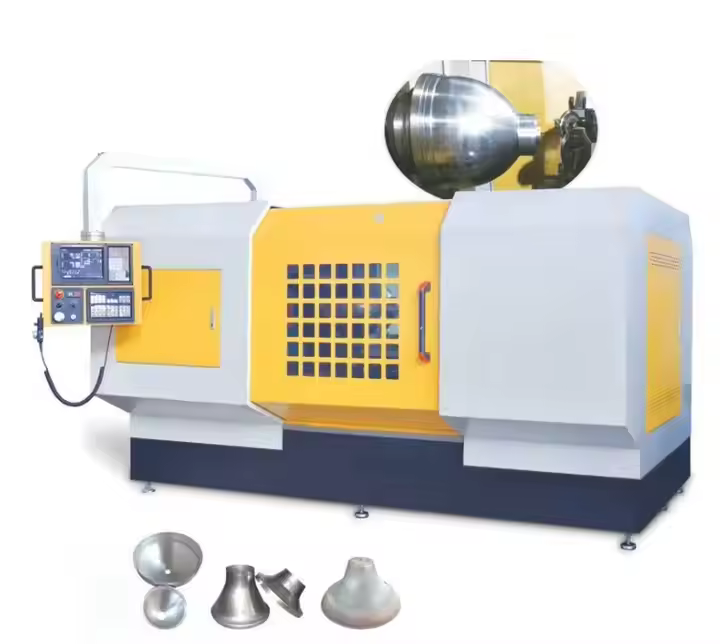

Explore our industrial equipment line: learn more about the NANSEN CNC Spinning Machine or review our full range of Metal Forming Machines.
