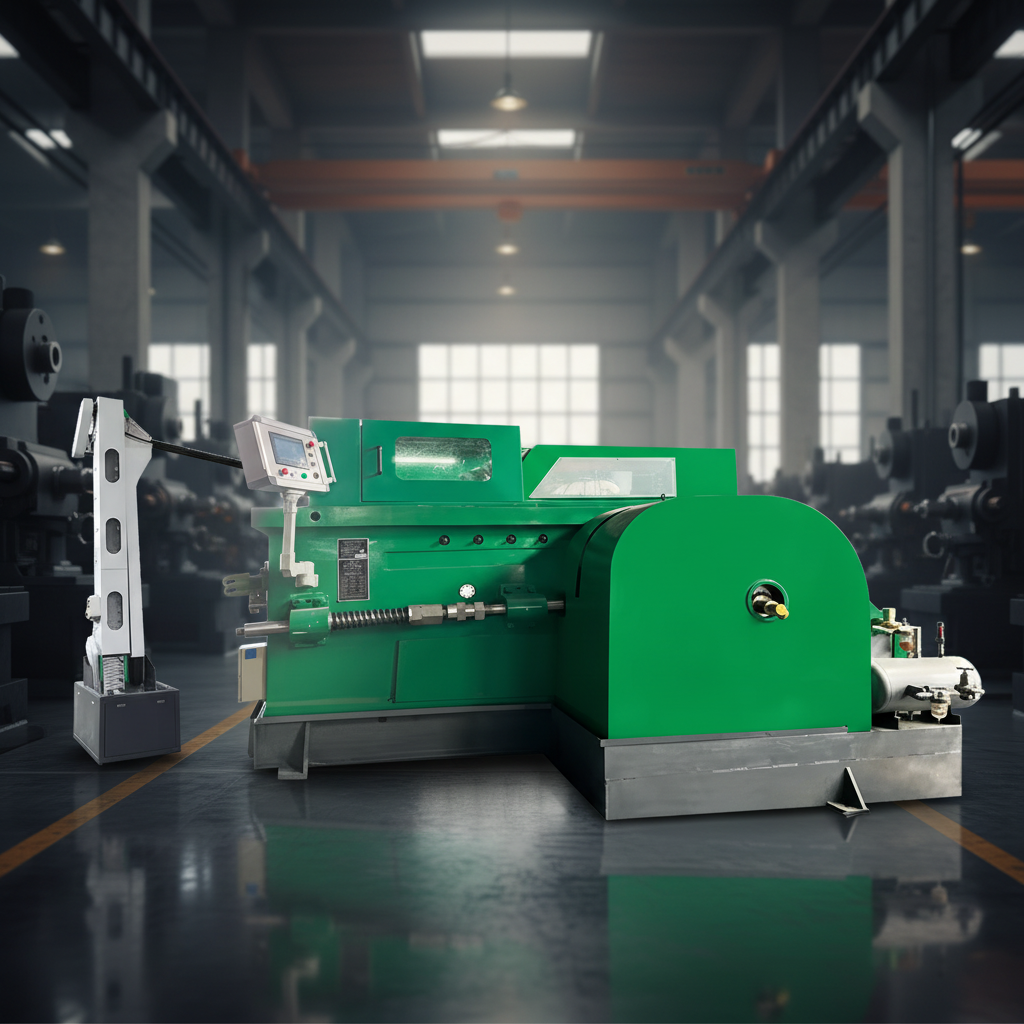

Horizontal Cold Extrusion Machine Guide: High-Speed Impact Forming for Cans, Bottles & Tubes
Share
In high-speed container manufacturing and packaging production, few forming technologies can rival the productivity and efficiency of horizontal cold impact extrusion. By converting flat aluminum slugs into seamless, thin-walled cylindrical shells at speeds reaching 60 to 120 pieces per minute, horizontal cold extrusion presses serve as the powerhouse behind global aerosol can, monobloc beverage bottle, and battery casing production.
While vertical presses excel at deep drawing and symmetrical heavy-walled cups, the horizontal architecture offers specific structural and kinematic advantages for continuous high-speed production. This technical guide explores the working mechanics of horizontal cold extrusion machines, examines the toggle-joint drive mechanism, compares horizontal vs. vertical line integration, details machine specifications from 500T to 1200T, and outlines complete turnkey production lines.
The Kinematics of High-Speed Horizontal Impact Extrusion
Horizontal cold extrusion is primarily performed as a backward impact extrusion process. A lubricated aluminum slug (typically Aluminum 1070 or 1050 with 99.5%–99.7% purity) is fed into a horizontal die pocket. A hardened punch drives horizontally into the slug with high kinetic energy.
Because the die chamber confines the slug on all sides except the annular clearance between the punch and die cavity, the metal plastically deforms and flows backward along the outer surface of the punch at velocities exceeding several meters per second. Within a fraction of a second, a solid disc slug transforms into a seamless, deep, thin-walled cylinder with a solid, integral bottom.
The Mechanical Toggle-Joint Advantage
Modern horizontal presses utilize an optimized knuckle-joint (toggle-joint) kinematic drive rather than a standard hydraulic cylinder or basic eccentric crankshaft:
- High Impact Force at Bottom Dead Center (BDC): The toggle mechanism decelerates the ram as it approaches the end of the stroke, delivering peak tonnage (500T to 1200T) exactly at the moment of metal extrusion. This allows sufficient time for uniform radial metal flow without micro-tearing.
- Rapid Approach and Return Stroke: Once extrusion is completed, the linkage accelerates the ram backward, maximizing the cycle rate up to 120 strokes per minute (SPM).
- Energy Conservation: Mechanical flywheels store and release rotational inertia efficiently, reducing continuous electrical draw compared to hydraulic systems operating at identical cycle frequencies.
Horizontal vs. Vertical Extrusion: The Automation & Throughput Advantage
Choosing between horizontal and vertical cold forming depends heavily on production throughput requirements and downstream automation:
| Comparison Feature | Horizontal Cold Extrusion Machine | Vertical Cold Extrusion Machine |
|---|---|---|
| Production Speed | 60 – 120 pieces/minute; optimized for continuous high-speed mass production. | 10 – 30 pieces/minute; designed for heavy deep-drawing strokes and high-pressure forming. |
| Part Ejection & Transfer | Gravity-assisted discharge: As the stripper ring strips the can from the horizontal punch, the part drops directly onto a linear belt conveyor. | Requires bottom hydraulic knockout pins and synchronized pneumatic or robotic grippers to lift parts out of the die bed. |
| In-Line Integration | Straight-line layout connects directly to washing, trimming, necking, and printing lines without elevation changes. | Commonly operated as independent stand-alone cells or with rotary indexing transfer tables. |
| Machine Stability | Low center of gravity with massive horizontal monolithic bed absorbs dynamic shock loads smoothly at >100 SPM. | Taller vertical profile requires robust upper-crown anchoring under high cyclic shock loads. |
| Maintenance Access | All dies, punches, crankshafts, and lubrication lines are accessible at floor level without scaffolding or ladders. | Upper cylinders and hydraulic valving require overhead maintenance access platforms. |
For operations manufacturing thick-walled automotive bushings, solid forward extrusions, or large-diameter battery components, review our Vertical Cold Extrusion Machine.
Technical Specifications & Tonnage Sizing (500T to 1200T)
NANSEN engineers horizontal cold extrusion presses in tonnage ranges from 500 Tons up to 1200 Tons to accommodate various can diameters, wall thicknesses, and alloy strengths:
| Operational Parameter | Horizontal Extrusion Specification |
|---|---|
| Nominal Extrusion Force | 500 – 1,200 Tons (Customizable by model) |
| Continuous Production Speed | 60 – 120 pieces per minute (Stepless frequency regulation) |
| Maximum Extrusion Diameter | Up to φ90 mm (Pure aluminum and ductile alloys) |
| Maximum Extrusion Length | Up to 350 mm |
| Drive Mechanism | Heavy-duty mechanical toggle-joint mechanism with pneumatic clutch-brake |
| Control Interface | Siemens PLC with multi-axis touch HMI and real-time tonnage monitoring |
Primary Industrial Applications
Horizontal cold extrusion machines are the core forming equipment across several key industries:
- Aluminum Aerosol Cans: Seamless monobloc containers for personal care (deodorants, hairsprays, body sprays), pharmaceuticals, and technical industrial chemicals.
- Monobloc Aluminum Bottles: Lightweight, infinitely recyclable metal bottles for beverages, energy drinks, and premium cosmetics.
- Cylindrical Battery Shells: Thin-walled aluminum and steel capacitor housings, lithium-ion battery containers, and sensor casings.
- Collapsible Metal Tubes: Ointment tubes, adhesive containers, and artist paint tubes with integral threaded nozzles.
Complete Automated Turnkey Can Production Line Workflow
In a modern aluminum can plant, the horizontal extrusion press is the heartbeat of a continuous production line:
- Automated Slug Feeding: Annealed and zinc-stearate lubricated slugs are fed via vibratory hopper into the gravity track, which indexes one slug into the die pocket per stroke.
- High-Speed Impact Extrusion: The Horizontal Cold Extrusion Press forms the seamless can shell at up to 120 pieces/min.
- Continuous Washing & Degreasing: The cans transfer immediately into an in-line Industrial Ultrasonic Washing & Drying Line to remove surface oils before coating.
- Trimming, Brushing & Beading: The uneven open rim is precision-trimmed to exact length, and the exterior surface is brushed smooth.
- Internal Lacquering & Curing: A protective epoxy-phenolic coating is sprayed inside each can to prevent chemical reaction with the contents.
- External Printing & Necking: Multi-color offset printing applies branding, followed by multi-stage rotary necking to form the final can shoulder and valve aperture.
Tooling Engineering & Comprehensive Safety Sensor Integration
Operating at 100+ strokes per minute with hundreds of tons of force demands extreme tooling durability and fail-safe sensor protection:
- Tungsten Carbide Forming Dies: Die cavities feature micro-grain WC-Co inserts with high-precision mirror polishing to withstand severe friction and prevent material pickup.
- Liquid-Cooled Punch Holders: Continuous internal coolant circulation dissipates heat buildup, preventing thermal expansion from altering wall-thickness tolerances.
- Double-Slug & Misfeed Detection: High-speed optical and eddy-current sensors detect if two slugs enter the die or if a slug fails to seat correctly, disengaging the pneumatic clutch within milliseconds to protect the punch and die from catastrophic damage.
- Real-Time Dynamic Tonnage Monitoring: Piezoelectric load cells measure the stroke-by-stroke extrusion force, automatically warning operators if tool wear or inadequate slug lubrication increases forming resistance.
Facility Layout Consultation, Tooling Trials & Global RFQ
Whether you are establishing a new monobloc aerosol can facility or expanding an existing packaging line, NANSEN delivers complete engineering expertise:
- Turnkey facility layout planning and cycle-time optimization.
- Custom tooling design matching your specific can diameter, bottom profile, and wall thickness.
- Factory pre-shipment trial stamping using your sample slugs to verify CMM tolerances and surface quality.
- Export packing in heavy-duty moisture-proof wooden crates, with worldwide on-site installation and technician training.
To submit your component drawings or request a technical proposal for a 500T–1200T horizontal cold extrusion press, contact our engineering team at nsmonica88@gmail.com or explore our complete Metal Forming Machinery Collection.
