Industrial Grinding & Polishing Machine Guide: Achieving Precision Surface Finishing (Ra ≤ 0.2 μm)
Share
In modern industrial manufacturing, surface finishing is much more than an aesthetic final touch—it directly defines component longevity, sealing integrity, friction coefficients, and corrosion resistance. Across industries ranging from stainless steel cookware and sanitary fittings to high-pressure valve balls and aerospace hardware, achieving consistent surface roughness requires transitioning from manual polishing to automated industrial grinding and polishing equipment.
This technical guide examines the working principles of industrial surface finishing machinery, explains how to achieve mirror-grade finishes (Ra ≤ 0.2 μm), compares automated vs. manual operations, and provides engineering insights into specialized systems like the GM 800 Solid Metal Ball Grinding System.
The Critical Role of Surface Finishing in Metal Manufacturing
Surface texture directly influences how metallic parts interact with their operating environment:
- Fluid Sealing Performance: For valve balls, pump pistons, and hydraulic fittings, microscopic surface peaks create leak paths. Precision grinding levels surface irregularities to guarantee zero-leakage shutoff under extreme working pressures.
- Hygienic & Food-Grade Standards: Cookware, commercial food preparation equipment, and pharmaceutical vessels require smooth finishes (typically Ra ≤ 0.4 μm or mirror finish Ra ≤ 0.2 μm) to eliminate crevices where bacteria, food residue, and cleaning agents can accumulate.
- Corrosion Resistance: A polished surface minimizes the exposed surface area and micro-cracks where oxidation and galvanic corrosion initiate.
- Decorative Appeal: High-end kitchenware, architectural hardware, and automotive trims demand blemish-free, high-reflectivity mirror finishes without chatter marks or waviness.
Understanding Surface Roughness: Achieving Ra ≤ 0.2 μm (Mirror Finish)
Surface roughness is commonly quantified by Ra (Roughness Average)—the arithmetical mean deviation of the surface profile. Achieving a true mirror finish (Ra ≤ 0.2 μm) requires a staged progression across abrasive grits:
- Coarse Grinding (Stock Removal, Ra 1.6 – 3.2 μm): Removes parting lines, weld seams, deep draw marks, or forging scale using aggressive bonded abrasive wheels or coarse ceramic belts (60–120 grit).
- Intermediate Leveling (Semi-Finishing, Ra 0.4 – 0.8 μm): Refines the scratch pattern and levels macroscopic waviness using medium-grit abrasive pads or flexible flap wheels (240–400 grit).
- Precision Polishing & Buffing (Ra ≤ 0.2 μm): Utilizes sisal buffs, ventilated cotton wheels, and specialized diamond or chromium oxide polishing compounds. The mechanical friction and chemical action of the compound flow the microscopic amorphous layer (Beilby layer) to create a defect-free specular reflection.
Automated Surface Finishing vs. Manual Polishing Stations
Many traditional factories still rely on manual handheld buffing wheels. However, scaling production highlights severe limitations:
| Evaluation Metric | Manual Buffing Stations | Automated Grinding & Polishing Machine |
|---|---|---|
| Quality Consistency | High variance; dependent on operator fatigue, pressure control, and shift changes. | 100% repeatable; PLC controls pressure, rotational speed, and cycle time identically for every batch. |
| Labor & Throughput | Requires 3–4 skilled polishers per production line; high labor turnover and training downtime. | One automated unit matches the output of 3–4 manual polishers, with a single operator overseeing multiple machines. |
| Workplace Safety | High occupational hazards: airborne metal dust, wheel snagging, and repetitive strain injuries. | Enclosed work chamber with built-in dust collection ports and coolant mist extraction for strict environmental compliance. |
| Consumable Efficiency | Uneven wheel wear and erratic compound application result in 25–40% abrasive waste. | Controlled contact geometry and automated compound dosing optimize abrasive life and minimize chemical usage. |
Key Machine Architecture & Engineering Parameters
When selecting an industrial grinding and surface finishing machine, look for these structural characteristics:
1. Heavy-Duty Frame & Vibration Damping
Micro-vibrations between the abrasive wheel and the workpiece are the primary cause of chatter marks, orange peel effects, and surface waviness. NANSEN surface finishing machines utilize reinforced, stress-relieved cast-iron bases that absorb rotational harmonics, ensuring uninterrupted contact throughout high-load grinding cycles.
2. Variable Frequency Drive (0 – 1500 RPM)
Different metals require strictly controlled surface feet per minute (SFPM). Soft aluminum and brass overheat and smear if buffed at excessive speeds, while stainless steel and hard alloys require high rotational energy. Integrated frequency inverters allow operators to program exact rotational speeds tailored to the workpiece alloy.
3. Customizable Worktable Dimensions (600 mm – 1200 mm)
Modular worktable sizing accommodates diverse workpiece geometries, from deep drawn cookware pots and round serving trays to multi-fixture mounting plates holding dozens of small hardware components simultaneously.
4. PLC & HMI Touchscreen Controls
Stored multi-step polishing recipes allow operators to switch between parts in minutes. Automated parameter memory eliminates trial-and-error setups and ensures recipe compliance across different operating teams.

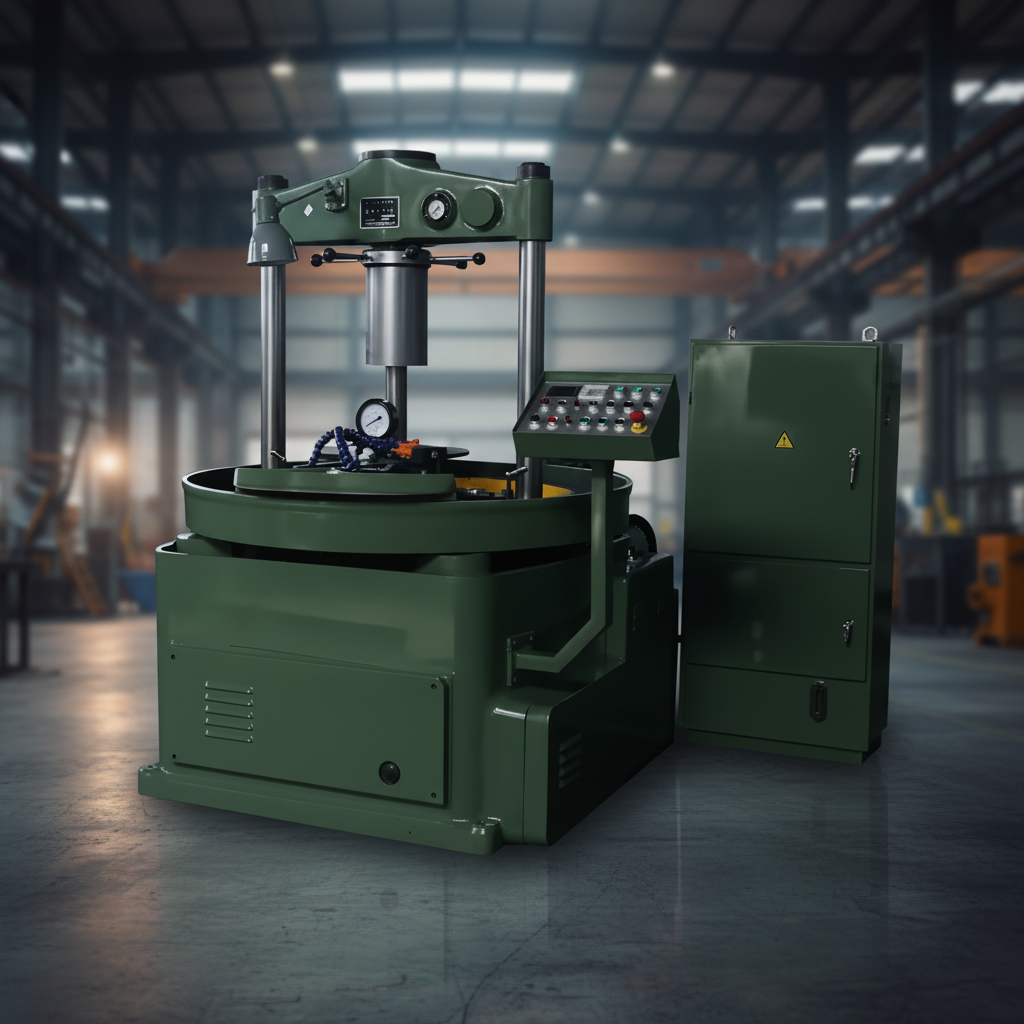

Specialized Configuration: GM 800 Solid Metal Ball Grinding System
For valve manufacturing and high-precision fluid control, spherical geometry demands dedicated grinding technology. The GM 800 (Out-Loop) is custom-engineered for processing copper, brass, and stainless steel solid valve balls:
| GM 800 System Parameter | Specification |
|---|---|
| Target Application | Precision grinding of copper, brass, and metal solid valve balls (Out-Loop) |
| Grinding Plate Diameter | φ800 mm (Plate Dimensions: 800 × 440 × 100 mm) |
| Main Motor Power | 5.5 kW (High-torque industrial drive) |
| Grinding Disc Rotation Speed | 10 – 80 RPM (Stepless adjustment) |
| Working Hydraulic Pressure | 50 kN |
| Auxiliary Pumps | Hydraulic Oil Pump (1.1 kW) + Coolant Water Pump (250 W) |
| Machine Net Weight | 4,580 kg (Heavy vibration-damped construction) |
| Footprint Dimensions (L × W × H) | 2,280 × 1,816 × 2,106 mm |
Integrated Manufacturing Workflow: From Raw Blank to Mirror Finish
Surface finishing is the critical bridge connecting metal forming to final packaging. Within NANSEN turn-key production lines, the workflow follows a synchronized path:
- Sheet Metal Forming: Blanks are formed using our NS-40 / NS-55E Deep Draw Press Machine or shaped on the CNC Metal Spinning Machine.
- Hardware Fastening: For cookware and containers, brackets and handles are secured using the Automatic Hydraulic Cookware Riveting Machine.
- Pre-Wash & Degreasing: Drawing lubricants and oils are removed in the Ultrasonic Cleaning & Drying Line to prevent abrasive wheel fouling.
- Surface Finishing & Polishing: Components are finished on the Industrial Grinding & Polishing Machine to achieve the targeted Ra specification.
- Valve Ball Spherical Finishing: High-tolerance valve bodies and spheres are routed to the Industrial Valve Ball Grinding Machine for centerless precision lapping.
Engineering Consultation, Sample Testing & Turn-Key Delivery
Achieving the optimal balance between cycle time, abrasive consumption, and surface finish requires practical trials. NANSEN provides complete OEM/ODM technical support:
- Workpiece Sample Trials: Send us your raw stamped or cast components; our laboratory will develop the optimal abrasive recipe, rotational speeds, and stage count to achieve your required Ra finish.
- Custom Fixturing: In-house fixture engineering for rapid clamping of irregular parts.
- Global Commissioning: Full ocean-export crating, documentation (B/L, CO, Packing List), and international on-site setup and training.
For technical inquiries or a customized equipment quotation, contact our engineering team at nsmonica88@gmail.com or browse our complete Industrial Surface Finishing Equipment Catalog.
