Industrial Ultrasonic Cleaning & Drying Line Guide: Continuous Multi-Stage Degreasing for Metal Parts
Share
In high-precision metal forming and packaging manufacturing, component cleanliness is an indispensable prerequisite for secondary processing. Following heavy metal deformation—such as impact extrusion, deep drawing, stamping, or rotary spinning—part surfaces are heavily coated with extreme-pressure drawing lubricants, zinc stearate powders, polishing waxes, and microscopic metallic fines. Failing to thoroughly remove these residues leads to coating delamination, anodizing blotches, internal lacquering pinholes, and premature electrical failure in capacitor shells.
Traditional manual solvent washing or static dipping tanks create massive labor bottlenecks, uneven cleaning results, and hazardous VOC emissions. Modern continuous facilities solve this challenge using automated crawler-type industrial ultrasonic cleaning and drying lines. This technical guide explores the working principles of multi-stage ultrasonic cavitation, details the engineering architecture of NANSEN's 15.5-meter continuous washing line, compares inline systems against batch cleaning, and examines full production line integration.
The Physics of Ultrasonic Cavitation in Industrial Degreasing
Ultrasonic cleaning operates via acoustic cavitation. High-frequency electrical energy generated by industrial transducers (>28 kHz) is converted into mechanical acoustic waves transmitted through an aqueous cleaning solution.
During the alternating high-pressure and low-pressure acoustic cycles:
- Rarefaction Phase: Negative pressure tears the liquid apart, creating millions of microscopic vapor cavities (bubbles).
- Compression Phase: Positive acoustic pressure compresses the bubbles until they violently implode.
- Micro-Jet Cleansing Action: Each implosion releases localized shock waves with instantaneous temperatures reaching 5,000 K and high-velocity micro-jets exceeding 100 meters per second.
Because acoustic waves propagate uniformly in all directions through the fluid, cavitation acts simultaneously on exterior contours, deep blind holes, internal threads, and delicate crimping crevices without causing microscopic abrasive scratching or mechanical distortion on ductile aluminum alloys.
The 4-Stage Continuous In-Line Cleaning & Drying Workflow
NANSEN's continuous industrial washing line automates the entire residue removal process within a sealed, continuous 15.5-meter tunnel:
-
Stage 1: Multi-Transducer Ultrasonic Cavitation & Immersion Soak
Parts enter on a specialized variable-speed stainless steel crawler conveyor (900 mm effective width) into an immersion tank heated to 55°C – 65°C. High-power 28 kHz HESEN ultrasonic transducers dislodge tenaciously bonded zinc stearate, extrusion grease, and metallic dust. An integrated oil skimmer and weir filtration system continuously separates floating surface oils. -
Stage 2: Secondary Ultrasonic Fine Rinse & Agitation
Components transition into a secondary ultrasonic bath with recirculating filtration. This stage dissolves trace surfactant residues and flushes remaining particulate micro-fines from blind cavities. -
Stage 3: Recirculating Cascade Spray Rinsing
High-pressure multi-directional spray manifolds deluge the parts from top, sides, and bottom with heated reverse-osmosis (RO) or deionized (DI) water. Cascade fluid replenishment ensures progressive purity, eliminating chemical drag-out between zones. -
Stage 4: Dual-Action High-Velocity Air Knife & Thermal Drying
Achieving 100% moisture-free output at conveyor speeds up to 3 m/min requires a coordinated two-step drying system:- High-Pressure Air Knives: High-velocity laminar air curtains cut surface water droplets and purge pooled liquid from internal cup recesses.
- Forced Recirculating Hot Air Tunnel (80°C – 120°C): Digital PID temperature-controlled heating coils evaporate residual microscopic moisture films, delivering warm, bone-dry parts ready for immediate automated inspection, coating, or packaging.

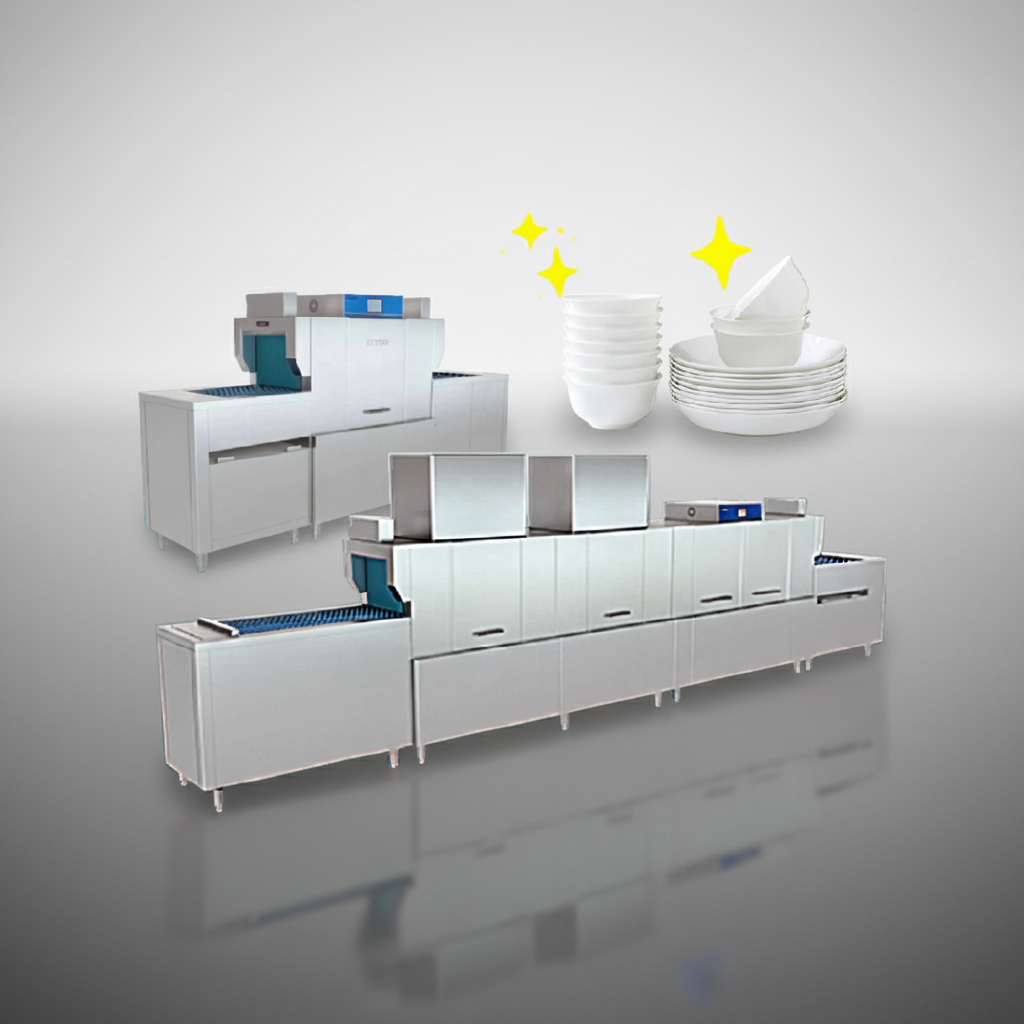

Technical Specifications: NANSEN 15.5m Continuous Washing Line
Below are the operational and mechanical specifications of our standard heavy-duty continuous crawler cleaning system:
| System Parameter | Specification Details |
|---|---|
| Overall Machine Footprint (L × W × H) | 15,500 × 1,750 × 1,950 mm (Heavy-duty modular construction) |
| Structural Material | Heavy-gauge SUS304 stainless steel tanks, piping, manifolds & external panels |
| Effective Conveyor Width | 900 mm (Accommodates bulk part feeding or multi-pocket fixtures) |
| Conveyor Line Speed | 0.5 – 3.0 m/min (Stepless variable frequency regulation) |
| Ultrasonic Operating Frequency | >28 KHz (Industrial HESEN piezo-electric transducers) |
| Drying Chamber Temperature | 80°C – 120°C (Digital PID closed-loop control) |
| Total Connected Electrical Power | Approx. 115 kW / 415V 3-Phase 50/60Hz |
| Throughput Capacity | Up to 5,000+ parts per hour (depending on component dimensions) |
| Automation Control Interface | Siemens / Schneider PLC with central touch HMI diagnostics |
Continuous Crawler System vs. Batch Basket Cleaning
For operations expanding past 1,000 parts per hour, moving to an automated continuous washing line offers distinct operational benefits:
| Comparison Dimension | Batch Basket Immersion Tanks | Continuous Crawler Ultrasonic Line |
|---|---|---|
| Workpiece Collision & Denting | Parts are tossed into bulk baskets; mutual tumbling and impact cause edge dents, scratches, and rejects on soft aluminum. | Parts travel in an orderly monolayer on the stainless mesh crawler without tumbling, preserving pristine surface geometry. |
| Drying Performance | Water pools in basket crevices and nested parts; requires prolonged offline batch oven baking, often leaving watermark stains. | Precision air knives blast away pooled water followed by instantaneous recirculating hot air drying; zero watermarks. |
| Labor & Operational Flow | Requires manual crane hoisting, basket loading/unloading, and operator exposure to hot vapor and chemicals. | 100% automated; connects upstream presses directly to downstream lacquering, annealing, or packing conveyors. |
| Chemical Bath Life | Rapid chemical degradation from heavy sludge buildup; requires frequent total tank dump-and-refill cycles. | Continuous weir skimming, multi-stage cartridge filtration, and cascade replenishment extend chemical bath life by 300%. |
Turn-Key Production Line Integration
The industrial washing line functions as the critical central hygiene bridge across NANSEN manufacturing workflows:
- Metal Forming: Seamless shells are produced via high-speed cold impact on the Horizontal Cold Extrusion Machine or formed on the Vertical Cold Extrusion Press and Deep Draw Press Machine.
- Continuous Degreasing & Drying: Formed components feed directly into the Automatic Ultrasonic Cleaning and Drying Line, completely stripping stamping oils and zinc stearate.
- Secondary Surface Finishing: Clean, dry parts transfer directly to the Industrial Grinding & Polishing Machine or pass into continuous internal lacquering ovens without risk of oil contamination.
Engineering Consultation, Water Treatment & Global RFQ Support
Every industrial cleaning project requires customized detergent chemistry, temperature zoning, ultrasonic power distribution, and wastewater handling matching local environmental standards. NANSEN provides full turnkey engineering:
- Full facility layout design, electrical distribution planning, and water recirculation schematics.
- Custom crawler belt fixturing to hold cylindrical shells, rectangular battery cases, or irregular stampings.
- Optional oil-water separators, weir filtration units, and closed-loop DI water filtration systems.
- Complete ocean export packaging in heavy-duty moisture-proof wooden crates with on-site technician installation and training worldwide.
To evaluate your component cleaning requirements or request a technical proposal for our 15.5m continuous ultrasonic line, contact our engineering team at nsmonica88@gmail.com or explore our complete Industrial Cleaning Equipment Catalog.
