In precision sheet metal fabrication, rolling flat strips or plates into accurate cylindrical shells, pipe clamps, and curved casings is a critical manufacturing phase. Achieving uniform curvature, minimizing flat unbent edges, and protecting sensitive pre-finished metal surfaces from galling or indentation require modern rolling technology beyond traditional manual or hydraulic pyramid benders.
The introduction of closed-loop servo-electric motion control has revolutionized precision plate rolling. This technical guide explores the kinematics of asymmetric three-roll bending, compares servo-driven benders against conventional hydraulic systems, details the engineering specifications of NANSEN's Servo Three Roll Bending Machine (Ø25 mm to Ø180 mm), and outlines automated production line integration.
Kinematics of Three-Roll Plate Bending: Eliminating Flat Ends
Plate bending involves applying bending moments beyond the material's yield strength while remaining below its ultimate tensile failure limit. In standard symmetrical three-roll benders (pyramid roll geometry), the distance between the bottom roll contact points leaves an unbent tangent zone at the leading and trailing ends—commonly known as the flat end defect. Correcting this flaw in secondary press operations adds significant labor and slows takt time.
The Asymmetric Three-Roll Solution
NANSEN's three-roll bending machine adopts an asymmetric roller configuration:
- Top Pinch Roll & Bottom Pinch Roll: Clamp the sheet securely at a fixed vertical pinch point. This continuous mechanical grip prevents the plate from slipping during initial feed.
- Adjustable Side Forming Roll: Positioned obliquely relative to the pinch rolls, the side roll moves along an inclined linear or planetary path driven by a high-torque AC servo motor.
- Initial Edge Pre-Bending: By clamping the plate edge and elevating the side roll immediately at the leading margin, the machine pre-bends the plate right from the extreme edge, reducing the residual unbent flat zone to negligible dimensions (less than 1.5 times the plate thickness).
Servo-Driven Electric Architecture vs. Traditional Hydraulic Systems
Transitioning from hydraulic cylinders to high-precision electric servo actuators provides substantial improvements in repeatability and operational cleanliness:
| Operational Factor | Traditional Hydraulic 3-Roll Bender | Servo-Driven Three Roll Bending Machine |
|---|---|---|
| Positioning Accuracy | ±0.3 – 0.5 mm; vulnerable to hydraulic fluid thermal expansion, valve lag, and viscosity drift throughout shifts. | ±0.05 mm repeatability: Closed-loop optical encoder feedback delivers micron-level side roll position stability regardless of ambient temperature. |
| Energy Efficiency | Hydraulic pump motor runs continuously, drawing power even when the machine is idling between part loading. | Servo motors only draw active electrical current during dynamic rolling strokes, reducing overall power consumption by up to 30%. |
| Surface Integrity | Rough roller contact often marrs polished stainless or soft aluminum; risk of oil mist contaminating parts. | Precision hard-chromed, mirror-ground alloy rollers ensure completely non-marring, scratch-free rolling on coated or polished sheets. |
| Cycle Speed | 3 – 5 parts per minute with manual loading and visual operator inspection. | 8 – 13 parts per minute: Fully automated servo strip feed, high-speed single-pass rolling, and automatic bottom drop discharge. |

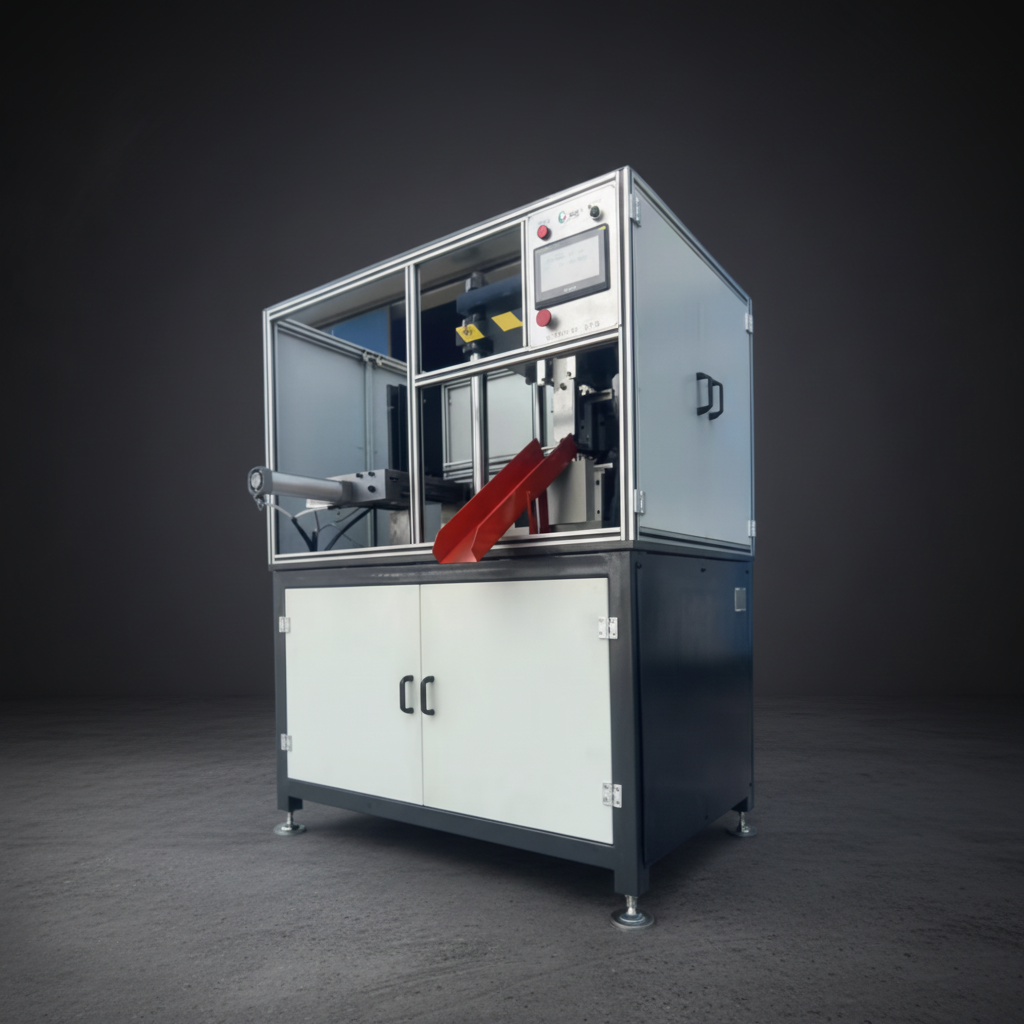

Technical Specifications: NANSEN Servo Three-Roll System
Below are the operational and engineering parameters of our standard precision servo roll-bending equipment:
| Engineering Parameter | Machine Specification |
|---|---|
| Processing Diameter Capabilities | Ø25 – Ø50 mm; Ø50 – Ø120 mm; Ø100 – Ø180 mm (Three standard frame sizes) |
| Formable Sheet Thickness Range | 1.0 – 3.0 mm; 1.0 – 5.0 mm (Mild steel, stainless steel, aluminum, brass & copper) |
| Workpiece Finished Height / Width | 20 – 50 mm / 20 – 120 mm |
| Automated Production Rate | 8 – 13 pieces per minute (Continuous automated cycle) |
| Main Drive Servo Motor Power | 3.0 kW – 5.0 kW (High-torque direct-drive servo system) |
| Control Architecture | Industrial Color Touchscreen HMI + Multi-Axis PLC Motion Controller |
| Machine Overall Dimensions | Length 1,500 mm × Width 1,200 mm × Height 2,000 mm |
| Total Machine Net Weight | Approx. 1,000 kg (Compact, monolithic vibration-damping structure) |
Primary Industrial Applications
The flexibility of programmable servo roll bending allows manufacturers to produce diverse curved and cylindrical components:
- Automotive & Exhaust Clamps: Heavy-gauge stainless steel pipe clamps, V-band exhaust rings, and bimetal mounting brackets.
- Electric Motor & Sensor Housings: High-precision cylindrical shells requiring strict concentricity (within 0.05 mm) for press-fit magnetic stators.
- Cookware & Hardware Components: External pot reinforcing hoops, lid retaining bands, and stainless steel cookware rim rings.
- HVAC & Fluid Conveyance: Precision thin-walled ducting collars, ventilation sleeves, and filter canister bodies.
For specialized wrapped split bearings and steel-backed bronze bushings, also review our dedicated Bushing Bearing Machine.
Automated Metal Forming Production Line Workflow
NANSEN engineers turnkey modular cells integrating roll bending with upstream stamping and downstream finishing:
- Strip Shearing & Hole Punching: Coil stock is decoiled, leveled, and punched with mounting slots or fastener holes.
- Precision Roll Bending: The blank feeds into the Servo Three Roll Bending Machine, curling into a closed cylinder at up to 13 pcs/min.
- Automated Seam Welding: Cylinders transfer into an automated longitudinal TIG or laser welding fixture.
- Ultrasonic Degreasing: Residual drawing oils are stripped in our in-line Industrial Ultrasonic Cleaning & Drying Line.
- Surface Polishing: Exterior weld beads are blended and polished to mirror finish on Industrial Grinding & Polishing Equipment.
Roller Tooling Engineering & Global RFQ Support
Different sheet metals exhibit unique springback characteristics. Stainless steel 304 requires over-bending compensation compared to ductile aluminum. NANSEN provides full application engineering:
- Custom-profiled, induction-hardened, and mirror-polished roll sets engineered to your part diameter and material tensile strength.
- Pre-shipment trial bending using your factory sheet samples, documented with laser roundness and profile reports.
- Turnkey export packaging in heavy-duty moisture-proof wooden crates, with on-site technician installation and operator training worldwide.
To evaluate your part drawings or discuss a custom three-roll bending solution, contact our engineering team at nsmonica88@gmail.com or explore our complete Metal Forming Machinery Collection.
