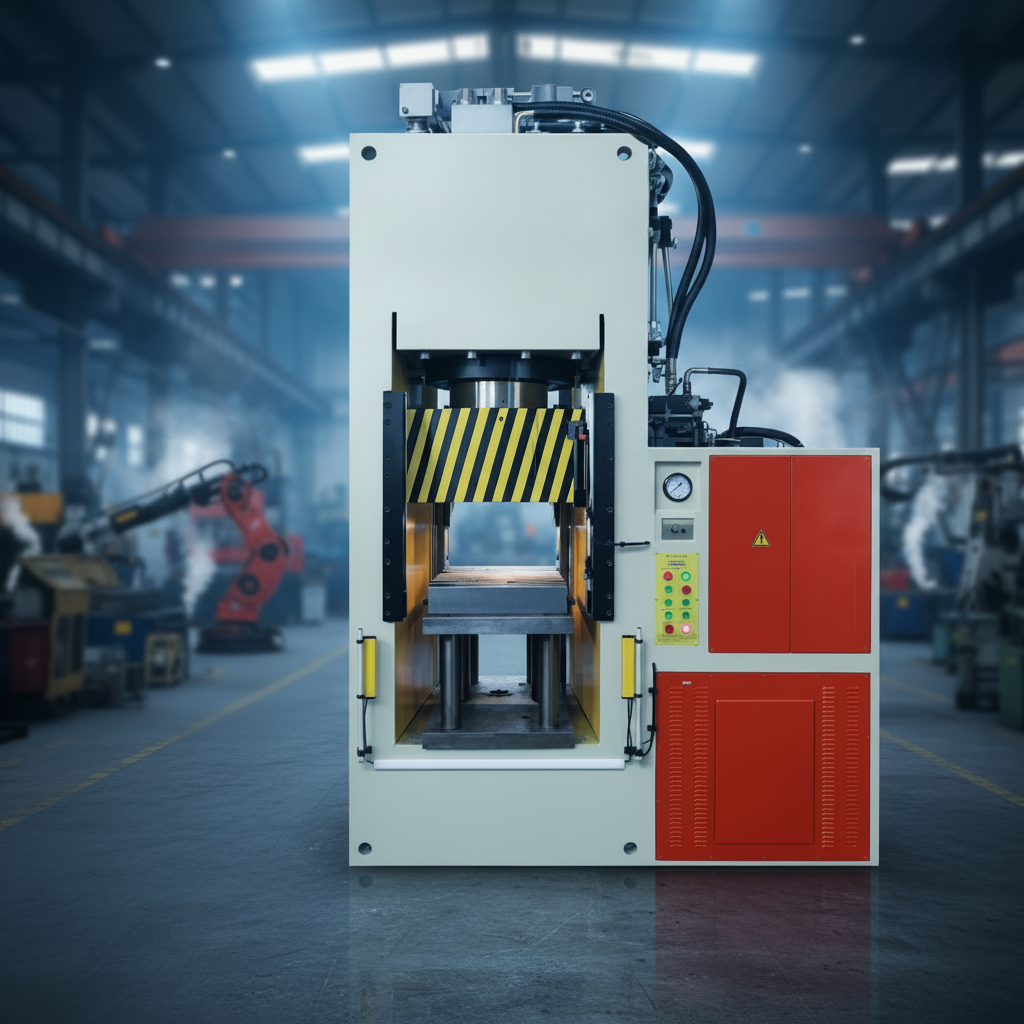

Vertical Cold Extrusion Machine Guide: Impact Forming, Tonnage Sizing & Tooling Engineering
Share
In high-volume metal manufacturing, cold extrusion represents one of the most efficient, chipless forming processes available today. By forcing solid metal slugs through specially engineered die orifices below the recrystallization temperature, manufacturers produce high-precision cylindrical, hollow, and stepped components with extraordinary mechanical properties and minimal material waste.
For operations manufacturing aluminum aerosol cans, collapsible tubes, capacitor cases, automotive bushings, and fluid connectors, choosing the proper press configuration and sizing machine tonnage is vital. This technical guide explores the mechanics of vertical cold extrusion, compares vertical vs. horizontal forming orientations, details tonnage selection from 300T to 1500T, and provides guidelines for slug preparation and tooling design.
Fundamentals of Cold Extrusion: How Metal Flows Under Pressure
Unlike hot forging or machining, cold extrusion subjects the workpiece to severe plastic deformation under hydrostatic pressure at room temperature. The process is categorized based on the direction of material displacement relative to the punch travel:
- Backward Extrusion (Impact Extrusion): The punch descends into a closed die cavity holding a lubricated slug. The metal is forced to flow upward backward around the punch through the annular clearance, forming a seamless hollow can, cup, or tube in a single stroke.
- Forward Extrusion: The metal flows in the same direction as the moving punch, commonly used to reduce shaft diameters, extrude solid pins, or form stepped rods.
- Combined / Compound Extrusion: Simultaneous forward and backward extrusion in a single cycle, forming complex components such as automotive piston pins, shock absorber cylinders, and bimetallic bushings.
Key Metallurgical Advantages
- Continuous Grain Flow: Metal fibers follow the contour of the part without being cut, dramatically improving fatigue life, shear strength, and burst pressure resistance.
- Work Hardening (Strain Hardening): Cold plastic deformation increases the yield and tensile strength of ductile alloys (e.g., Aluminum 1050, 1070, 6061, copper, and mild steel), allowing lighter wall thicknesses without sacrificing pressure ratings.
- Material Utilization Exceeding 95%: Traditional machining turns 40% to 60% of raw stock into scrap chips. Cold extrusion operates near net-shape, reducing scrap rates to under 2–5%.
- Exceptional Surface Finish: Mirror-like internal and external surfaces (Ra 0.2 – 0.8 μm) are produced directly from polished carbide dies, eliminating post-machining grinding stages.
Vertical vs. Horizontal Cold Extrusion: When to Choose Vertical
While both orientations are utilized in industrial metal forming, their structural layouts serve distinct part geometries:
| Feature / Metric | Vertical Cold Extrusion Machine | Horizontal Cold Extrusion Machine |
|---|---|---|
| Optimal Workpieces | Symmetric hollow cans, battery shells, aerosol containers, capacitor housings, and automotive bushings. | Long tubular components exceeding 400 mm, aluminum extruded collapsible tubes, and continuous multi-station transfer parts. |
| Feeding & Ejection | Assisted by natural gravity; bottom knock-out cylinder and top ejector provide smooth part stripping without bending. | Requires horizontal mechanical transfer grippers; ideal for integration into continuous high-speed inline packaging conveyors. |
| Alignment & Rigidity | Vertical four-column or monolithic frame ensures uniform circumferential die clearance, eliminating eccentric wall variation. | Horizontal slide requires robust side gibs to prevent gravity-induced punch drooping during deep strokes. |
| Floor Footprint | Compact vertical footprint; allows higher equipment density across factory floors. | Elongated horizontal footprint requiring extended clearance for feeder, ram, and discharge run-out tables. |
For long tubular parts or dedicated packaging lines, compare our Horizontal Cold Extrusion Machine with our vertical systems.
Sizing Machine Tonnage: From 300T to 1500T Capacities
Calculating the required extrusion force involves analyzing material flow stress, reduction ratio (cross-sectional area reduction), contact friction, and workpiece wall thickness. Sizing an underpowered press leads to stalled strokes and excessive tool fatigue, while an oversized press increases capital and electrical overhead.
Maximum Finished Diameter by Machine Tonnage
The table below provides maximum aluminum extrusion diameters achievable across standard NANSEN vertical cold extrusion tonnage ratings:
| Model Rating | 300T | 400T | 500T | 650T | 800T | 1200T | 1500T |
|---|---|---|---|---|---|---|---|
| Max Production Diameter (mm) | 65 | 68 | 74 | 92 | 110 | 136 | 160 |
Standard Model Specifications (300T – 800T)
| Engineering Parameter | 300T | 400T | 650T | 800T |
|---|---|---|---|---|
| Nominal Force (kN) | 3,000 | 4,000 | 6,500 | 8,000 |
| Max Working Pressure (MPa) | 22 | 22 | 22 | 24 |
| Main Cylinder Stroke (mm) | 500 | 500 | 490 | 550 |
| Total Machine Net Weight (Tons) | 10.2 | 11.8 | 15.2 | 26.5 |
Slug Preparation, Annealing & Surface Lubrication
Flawless cold extrusion is impossible without proper slug conditioning. The raw material disc must be meticulously prepared before entering the feeder bowl:
- Blanking / Shearing: Aluminum slugs are punched from cold-rolled strip or precision saw-cut from rod stock. End faces must be perpendicular and burr-free to prevent eccentric metal flow.
- Recrystallization Annealing: Work-hardened blanks are annealed in protective-atmosphere furnaces (typically 380°C – 420°C for aluminum 1050/1070) to achieve an ultra-soft dead annealed grain temper.
- Tumbling & Rumbled Surface Etching: Slugs are tumbled in ceramic media to produce a slightly matte, uniform micro-pocketed surface that acts as a reservoir for lubricant retention.
- Surface Lubrication: Applying zinc stearate, reactive soap conversion coatings, or synthetic polymer lubricants prevents metal-to-metal galling under contact pressures exceeding 2,000 MPa.
Tooling Engineering: Carbide Inserts & Die Pre-Stressing
Extrusion punches and die cavities endure immense cyclical mechanical and thermal fatigue. NANSEN tooling engineering incorporates:
- Tungsten Carbide (WC-Co) Punches: High-cobalt micro-grain carbide provides maximum compressive strength and wear resistance against continuous abrasive friction.
- Pre-Stressed Die Rings (Shrink Rings): Outer alloy steel rings are heat-shrunk over the carbide die core, inducing high compressive pre-stress that prevents tensile hoop bursting when internal pressure peaks.
- Quick-Change Tool Holders: Reduces die changeover times to under 30 minutes for multi-product operations.
Complete Automated Cold Forming Production Line Integration
For modern factories, the vertical cold extrusion press serves as the primary stage in an end-to-end automated manufacturing line:
- Slug Feeding & Sorting: Automated vibratory bowl elevator loads slugs into the orientation track.
- Cold Extrusion Forming: High-speed impact forming on the Vertical Cold Extrusion Press.
- Bushing Rolling & Forming: For automotive bearing shells and bimetal bushings, pre-formed strips are processed on the Bushing Bearing Machine and shaped on the Servo Three Roll Bending Machine.
- Ultrasonic Degreasing & Wash: Heavy extrusion lubricants are removed in the Ultrasonic Cleaning and Drying Line.
- Precision Surface Finishing: Parts are deburred and polished to specification on the Industrial Grinding and Polishing Machine.
Turn-Key Facility Design, Tooling Trials & Global RFQ
Every cold extrusion project involves customized component dimensions, tolerance bands, and production throughputs. NANSEN provides full turnkey engineering:
- Component feasibility analysis and finite element simulation of metal flow.
- Custom carbide punch and die design tailored to your 2D/3D component drawings.
- Trial stamping of customer sample slugs in our factory with CMM dimension validation prior to ocean shipping.
- Export-grade ocean crating with on-site installation, commissioning, and operator training worldwide.
To evaluate your part drawings or discuss a custom cold extrusion line from 300T to 1500T, contact our senior engineering team at nsmonica88@gmail.com or explore our Metal Forming Machinery Collection.
